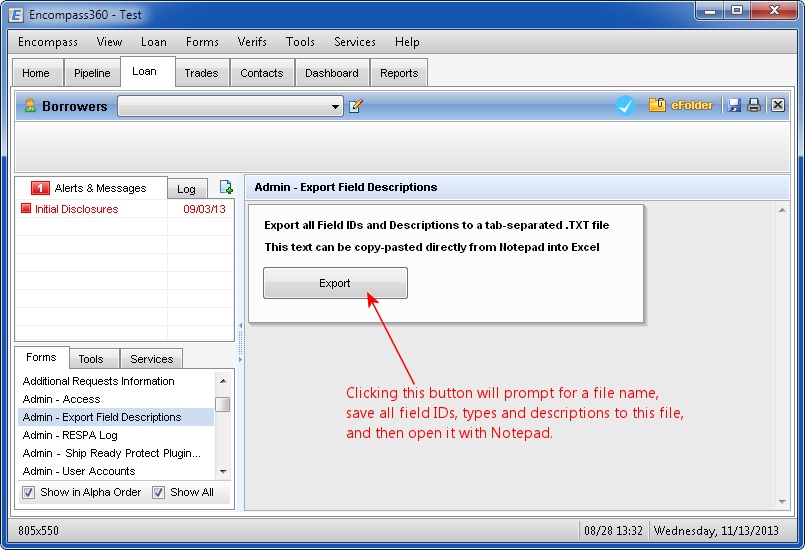

Admin Form - Field Export (Field IDs, Descriptions and Types)

Click here to download this form

This form will export all fields into a file for comparison between Encompass snapshots or versions. All ~ 30,000 files are exported. Resulting file should be ~ 2Mb. Indexed instances (i.e. FM00xx or DISCLOSURE.xxx) are not included.

Code on this form enumerates Field Descriptors via Loan.Session.Loans.FieldDescriptors object as follows:

Try
    Dim lst As New System.Collections.Generic.List(Of EllieMae.Encompass.BusinessObjects.Loans.FieldDescriptor)
    Dim fd As EllieMae.Encompass.BusinessObjects.Loans.FieldDescriptor
    ' 1. enumerate standard fields
    For Each fd In Loan.Session.Loans.FieldDescriptors.StandardFields
        lst.Add(fd)
    Next
    ' 2. enumerate virtual fields
    For Each fd In Loan.Session.Loans.FieldDescriptors.VirtualFields
        lst.Add(fd)
    Next
    ' 3. enumerate custom fields
    For Each fd In Loan.Session.Loans.FieldDescriptors.CustomFields
        lst.Add(fd)
    Next
    ' 4. create complete export text
    Dim sb As New System.Text.StringBuilder
    sb.Append("Type" & vbTab & "FieldID" & vbTab & "Format" & vbTab & "Len" & vbTab & _
              "MultiInstance" & vbTab & "Description" & vbCrLf)
    For Each fd In lst
        Dim sFieldType = "Standard"
        If fd.IsVirtualField Then sFieldType = "Virtual"
        If fd.IsCustomField Then sFieldType = "Custom"
        Dim sMultiInstance = ""
        If fd.MultiInstance Then sMultiInstance = fd.InstanceSpecifierType.ToString()
        Dim sLine As String
        sLine = sFieldType & vbTab & fd.FieldID & vbTab & fd.Format.ToString() & vbTab & _
            fd.MaxLength & vbTab & sMultiInstance & vbTab & fd.Description & vbCrLf
        sb.Append(sLine)
    Next
    ' 5. ask for output file
    Dim sfd As New System.Windows.Forms.SaveFileDialog
    sfd.Filter = "Text files (*.txt)|*.txt|All files (*.*)|*.*"
    sfd.CheckPathExists = True
    sfd.FilterIndex = 0
    If sfd.ShowDialog() = System.Windows.Forms.DialogResult.OK And _
        sfd.FileName.Length > 0 Then
        ' 6. save file
        Using fs As System.IO.FileStream = New System.IO.FileStream( _
            sfd.FileName, System.IO.FileMode.Create, System.IO.FileAccess.Write)
            Using sw As System.IO.StreamWriter = New System.IO.StreamWriter(fs)
                sw.Write(sb.ToString())
            End Using
        End Using
        ' 7. success message
        MsgBox("File saved: " + sfd.FileName, 64, "Success")
        ' 8. Open file with Notepad
        Shell("Notepad.exe """ & sfd.FileName & """", 1)
    Else
        ' error - file was not specified
        MsgBox("Please specify output file.", 48, "Error")
    End If
Catch ex As Exception
    ' unexpected error
    MsgBox("Error: " + ex.Message, 48, "Error")
End Try
